Springboot 整合seata（pg版）
Seata是分布式事务的解决方案，采用的是服务端和客户端模式
安装Nacos
安装服务端seata-server
下载：Releases · apache/incubator-seata (github.com)，我下载的是2.0.0版本，windows安装
pg数据库建立一个seata-server的数据库，并建立4个表
-- -------------------------------- The script used when storeMode is 'db' --------------------------------
-- the table to store GlobalSession data
CREATE TABLE IF NOT EXISTS public.global_table
(
xid VARCHAR(128) NOT NULL,
transaction_id BIGINT,
status SMALLINT NOT NULL,
application_id VARCHAR(32),
transaction_service_group VARCHAR(32),
transaction_name VARCHAR(128),
timeout INT,
begin_time BIGINT,
application_data VARCHAR(2000),
gmt_create TIMESTAMP(0),
gmt_modified TIMESTAMP(0),
CONSTRAINT pk_global_table PRIMARY KEY (xid)
);
CREATE INDEX idx_status_gmt_modified ON public.global_table (status, gmt_modified);
CREATE INDEX idx_transaction_id ON public.global_table (transaction_id);
-- the table to store BranchSession data
CREATE TABLE IF NOT EXISTS public.branch_table
(
branch_id BIGINT NOT NULL,
xid VARCHAR(128) NOT NULL,
transaction_id BIGINT,
resource_group_id VARCHAR(32),
resource_id VARCHAR(256),
branch_type VARCHAR(8),
status SMALLINT,
client_id VARCHAR(64),
application_data VARCHAR(2000),
gmt_create TIMESTAMP(6),
gmt_modified TIMESTAMP(6),
CONSTRAINT pk_branch_table PRIMARY KEY (branch_id)
);
CREATE INDEX idx_xid ON public.branch_table (xid);
-- the table to store lock data
CREATE TABLE IF NOT EXISTS public.lock_table
(
row_key VARCHAR(128) NOT NULL,
xid VARCHAR(128),
transaction_id BIGINT,
branch_id BIGINT NOT NULL,
resource_id VARCHAR(256),
table_name VARCHAR(32),
pk VARCHAR(36),
status SMALLINT NOT NULL DEFAULT 0,
gmt_create TIMESTAMP(0),
gmt_modified TIMESTAMP(0),
CONSTRAINT pk_lock_table PRIMARY KEY (row_key)
);
comment on column public.lock_table.status is '0:locked ,1:rollbacking';
CREATE INDEX idx_branch_id ON public.lock_table (branch_id);
CREATE INDEX idx_xid ON public.lock_table (xid);
CREATE INDEX idx_status ON public.lock_table (status);
CREATE TABLE distributed_lock (
lock_key VARCHAR(20) NOT NULL,
lock_value VARCHAR(20) NOT NULL,
expire BIGINT NOT NULL,
CONSTRAINT pk_distributed_lock_table PRIMARY KEY (lock_key)
);
INSERT INTO distributed_lock (lock_key, lock_value, expire) VALUES ('AsyncCommitting', ' ', 0);
INSERT INTO distributed_lock (lock_key, lock_value, expire) VALUES ('RetryCommitting', ' ', 0);
INSERT INTO distributed_lock (lock_key, lock_value, expire) VALUES ('RetryRollbacking', ' ', 0);
INSERT INTO distributed_lock (lock_key, lock_value, expire) VALUES ('TxTimeoutCheck', ' ', 0);

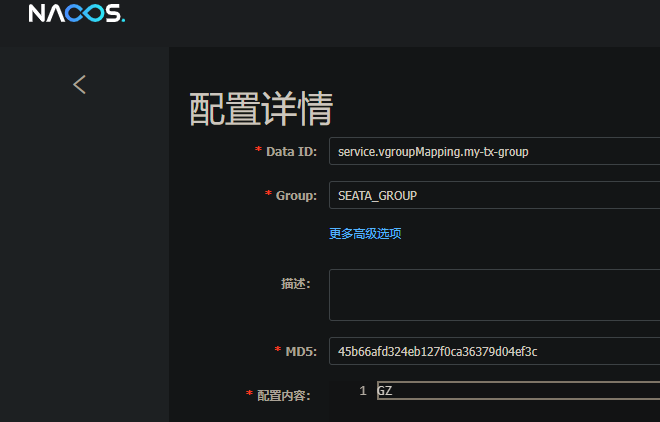

Nacos添加配置（大坑）
修改：D:/seata-server-2.0.0/seata/conf/application.yml
# 服务端口号
server:
port: 7091
# 服务名称
spring:
application:
name: seata-server
# 服务日志
logging:
config: classpath:logback-spring.xml
file:
path: ../runninglogs/logs/seata
extend:
logstash-appender:
destination: 127.0.0.1:4560
kafka-appender:
bootstrap-servers: 127.0.0.1:9092
topic: logback_to_logstash
# seata可视化界面登录的账号密码这里自己设置什么启动seata,到时候就用这个来登录（http://localhost:7091/#/sagastatemachinedesigner）
console:
user:
username: seata
password: seata
# seata服务端配置
seata:
service:
vgroup-mapping:
# 前面这个是组名(my-tx-group) :后面的是对应的集群名映射名（GZ） 这两个很重要到时候客户端要设置一致
my-tx-group: GZ
disable-global-transaction: true
config:
# 可设置的配置中心: nacos, consul, apollo, zk, etcd3
type: nacos
nacos:
server-addr: 127.0.0.1:8848
group: SEATA_GROUP
username: nacos
password: nacos123456
registry:
# 可设置的注册中心: nacos, eureka, redis, zk, consul, etcd3, sofa
type: nacos
nacos:
application: seata-server
group: SEATA_GROUP
server-addr: 127.0.0.1:8848
cluster: GZ # 这个参数在每个微服务seata时会用到这是集群参数
username: nacos
password: nacos123456
store:
# 可设置的数据源: file 、 db 、 redis
mode: db
db:
datasource: druid
db-type: postgresql
driver-class-name: org.postgresql.Driver
url: jdbc:postgresql://192.168.56.101:5432/seata-server
user: postgres
password: postgres
min-conn: 10
max-conn: 100
global-table: global_table
branch-table: branch_table
lock-table: lock_table
distributed-lock-table: distributed_lock
query-limit: 1000
max-wait: 5000
# 将安全认证进行去除，因为可能会导致一定的问题
security:
secretKey: SeataSecretKey0c382ef121d778043159209298fd40bf3850a017
tokenValidityInMilliseconds: 1800000
ignore:
urls: /,/**/*.css,/**/*.js,/**/*.html,/**/*.map,/**/*.svg,/**/*.png,/**/*.ico,/console-fe/public/**,/api/v1/auth/login
启动：D:/seata-server-2.0.0/seata/bin/seata-server.bat

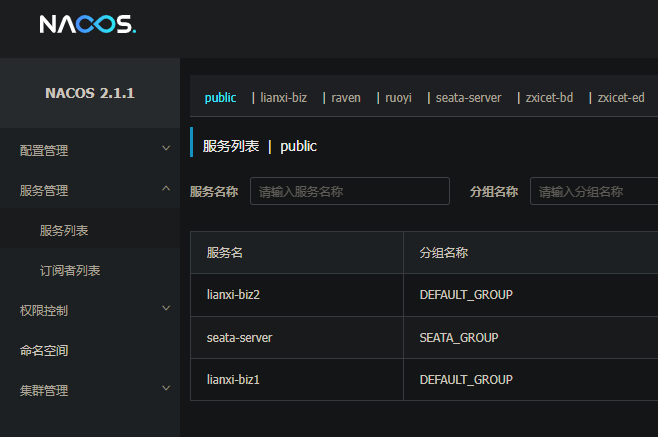

启动成功之后可以访问UI
http://localhost:7091/#/transaction/list
Springboot 整合客户端
引入Seata
<!--注册中心客户端-->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>
<!--配置中心客户端-->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
</dependency>
<!-- seata-->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-seata</artifactId>
</dependency>
整合openfeign
<!--引入openfeign-->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-loadbalancer</artifactId>
</dependency>
启动数据源代理（大坑）
springboot的启动类上添加注解 @EnableAutoDataSourceProxy
配置文件添加Seata的配置
# seata配置
seata:
enabled: true # spring 自动装配
enable-auto-data-source-proxy: true # 开启数据源自动代理
tx-service-group: my-tx-group #事务组名称 必须一定和你服务端配置的一样 必须 必须 必须
application-id: ${spring.application.name}
service:
vgroup-mapping:
default-tx-group: GZ #事务组内容 须一定和你服务端配置的一样
# 配置中心按照这个要求配置和服务端类似
config:
type: nacos
nacos:
group: SEATA_GROUP
server-addr: 127.0.0.1:8848
username: nacos
password: nacos123456
# 注册中心按照这个要求配置和服务端类似
registry:
type: nacos
nacos:
application: seata-server
server-addr: localhost:8848
username: nacos
password: nacos123456
cluster: GZ
group: SEATA_GROUP
每个微服务的数据库添加一个undo_log表
建表语句
CREATE TABLE IF NOT EXISTS public.undo_log
(
id SERIAL NOT NULL,
branch_id BIGINT NOT NULL,
xid VARCHAR(128) NOT NULL,
context VARCHAR(128) NOT NULL,
rollback_info BYTEA NOT NULL,
log_status INT NOT NULL,
log_created TIMESTAMP(0) NOT NULL,
log_modified TIMESTAMP(0) NOT NULL,
CONSTRAINT pk_undo_log PRIMARY KEY (id),
CONSTRAINT ux_undo_log UNIQUE (xid, branch_id)
);
CREATE INDEX ix_log_created ON undo_log(log_created);
COMMENT ON TABLE public.undo_log IS 'AT transaction mode undo table';
COMMENT ON COLUMN public.undo_log.branch_id IS 'branch transaction id';
COMMENT ON COLUMN public.undo_log.xid IS 'global transaction id';
COMMENT ON COLUMN public.undo_log.context IS 'undo_log context,such as serialization';
COMMENT ON COLUMN public.undo_log.rollback_info IS 'rollback info';
COMMENT ON COLUMN public.undo_log.log_status IS '0:normal status,1:defense status';
COMMENT ON COLUMN public.undo_log.log_created IS 'create datetime';
COMMENT ON COLUMN public.undo_log.log_modified IS 'modify datetime';
CREATE SEQUENCE IF NOT EXISTS undo_log_id_seq INCREMENT BY 1 MINVALUE 1 ;
